## The ssCat tool
`sscat` is fundamentally similar to the Linux `cat` or Windows `type` command: display on screen a log file.
But it also leverages the structure of the logs and offers filtering on any fields and transforming operations.
It is also fast, filtering-out ~50 millions log/s (display not included).
### Usage
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ none
Usage:
./build/bin/sscat [options] <sslog dir>
<sslog dir> : log directory
Definitions:
possible values are trace, debug, info, warn, error, critical
is a search string, potentially containing wildcard. Ex: "*home*log*"
Options:
-h : this help
Filtering options:
default : no filtering
-lmin : filter-in this level and above
-lmax : filter-out levels strictly above
-bmin : filter-in logs with binary buffers at least this size
-bmax : filter-out logs with binary buffers strictly above this size
-c : filter-in categories that matches
-nc : filter-out categories that matches
-t : filter-in threads that matches
-nt : filter-out threads that matches
-f : filter-in format strings that matches. CAUTION: arguments are not considered
-nf : filter-out format strings that matches
-a "": filter-in argument based on the value given as a string.
is between '=', '==', '>', '>=', '<', '<='
May be multiple occurences
Caution: equality and floats may have precision issues
Caution: no pattern matching on names and values
-o : end a serie of 'AND' filters and start a new one (OR)
Output modes:
default : colored text formatted logs
-m : monochrome text formatted logs
-j : JSON output
-i : information on the logs (date, stats, names, units, strings)
-v : dump only the argument values per line. Empty name means 'timestamp'. Multiple options possible.
Output options:
-u : use UTC time instead of local time
-p : formatter configuration of log display. Default "[%L] [%Y-%m-%dT%H:%M:%S.%f%z] [%c] [thread %t] %v%Q"
-q : formatter configuration of date (for output mode -j and -v). Default "%G"
-s : separator string between argument values (for output mode -v). Default " "
Formatting catalog:
%t Thread id
%v The actual text to log
%c Category
%L The log level of the message
%l Short log level of the message
%a Abbreviated weekday name
%A Full weekday name
%b Abbreviated month name
%B Full month name
%y Year in 2 digits
%Y Year in 4 digits
%m Month
%d Day of month
%p AM/PM "AM"
%z ISO 8601 offset from UTC in timezone
%H Hours in 24 format
%h Hours in 12 format
%M Minutes
%S Seconds
%e Millisecond part of the current second
%f Microsecond part of the current second
%g Nanosecond part of the current second
%E Milliseconds since epoch
%F Microseconds since epoch
%G Nanoseconds since epoch
%I Milliseconds since start of the record
%J Microseconds since start of the record
%K Nanoseconds since start of the record
%Q end of line and multiline binary buffer dump
%q ' (+ buffer[N])' or nothing if empty
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
### Output modes
The 4 major output modes are described in this section
#### Text output
This is the usual log visualization for humans and the default mode.
- The option `-p` fully configure its appearance.
- The option `-u` forces the usage of UTC time instead of the default local time
- The option `-m` disable the usage of terminal color for levels
An example of monochome text output is:
```
[ERROR] [2025-03-26T22:48:23.573933+01:00] [sslog-test] [thread main] Start of a batch of 25 mixed logs
[TRACE] [2025-03-26T22:48:23.573934+01:00] [/module1/stats] [thread main] The quick brown fox name_Renard jumps over the lazy dog
[TRACE] [2025-03-26T22:48:23.573935+01:00] [sslog-test] [thread main] Small log number 1
[ WARN] [2025-03-26T22:48:23.573935+01:00] [/module1/state] [thread main] Lorem ipsum dolor sit amet voltage=3.3_V intensity=530mA, consectetur adipiscing
```
#### Json output
This mode highlights the structured content of the logs, and is usually for machines.
- The option `-j` selects the JSON output mode
- The option `-u` forces the usage of UTC time instead of the default local time
- The option `-q` configures the format of the date
An example of JSON output is:
``` json
{
"logs" : [
{ "timestamp": "1743029303573933531", "thread": "main", "category": "sslog-test", "level": "error", "format": "Start of a batch of 25 mixed logs",
"args": [ ] },
{ "timestamp": "1743029303573934603", "thread": "main", "category": "/module1/stats", "level": "trace", "format": "The quick brown fox name_Renard jumps over the lazy dog",
"args": [ { "name": "name", "unit": "", "type": "str", "value": "Renard" } ] },
{ "timestamp": "1743029303573935083", "thread": "main", "category": "sslog-test", "level": "trace", "format": "Small log number 1",
"args": [ ] },
{ "timestamp": "1743029303573935785", "thread": "main", "category": "/module1/state", "level": "warn", "format": "Lorem ipsum dolor sit amet voltage=3.3_V intensity=530mA, consectetur adipiscing",
"args": [ { "name": "voltage", "unit": "V", "type": "f64", "value": 3.300000 }, { "name": "intensity", "unit": "mA", "type": "s32", "value": 530 } ] } ]
}
```
!!!
The format string is filled with the argument values so that it can be used directly for display
Further data manipulation can now be performed externally, for instance with the tool [jq](https://jqlang.org/).
#### Log information output
This mode displays meta-information about the logs.
- The option `-i` selects the information output mode
- The option `-u` forces the usage of UTC time instead of the default local time
An example of full information output is:
``` text
Start date : 2025-03-27T22:00:25.948638762+01:00 (local time)
Duration : 0.001 s
Size : 0.067 MB
Quantity : 3750 logs
Arg quantity : 3600 (17.9 B/log) (18.7 B/arg)
Clock res. : 0.556520 ns
Arg names : name, voltage, intensity
Arg units : V, mA
Strings : 31
0 [ T ] main
1 [C ] sslog-test
2 [ F ] Start of a batch of 25 mixed logs
3 [C ] /module1/stats
4 [ F ] The quick brown fox name_%s jumps over the lazy dog
5 [ A] Renard
6 [ F ] Small log number 1
7 [C ] /module1/state
8 [ F ] Lorem ipsum dolor sit amet voltage=%3.1f_V intensity=%dmA, consectetur adipiscing
9 [ F ] Small log number 2
10 [ A] Mr Tod
11 [ F ] Small log number 3
12 [C ] /module2/stats
13 [ A] Basil
14 [C ] /module2/state
15 [ F ] Small log number 4
16 [ A] Roxy
17 [ F ] Small log number 5
18 [C ] /module3/stats
19 [ A] Flash
20 [C ] /module3/state
21 [ F ] Small log number 6
22 [ A] Finn
23 [ F ] Small log number 7
24 [C ] /module4/stats
25 [ A] Happy
26 [C ] /module4/state
27 [ F ] Small log number 8
28 [ A] Jamie
29 [ T ] third
30 [ T ] second
```
It contains in particular the exhaustive list of unique strings encountered in the logging process and their usage (C=`category`, T=`thread`, F=`format` and A=`argument string value`).
It also extracts and displays the argument names and units (which are parts of the format strings)
#### Values output
This mode extracts and displays some values of the log arguments per line.
- The option `-v` selects the value output mode.
- This option can be present several times followed by the name of the argument value to display
- This option without value means the log timestamp
- Ex: `-v -v voltage` first displays the log timestamp, then the value of the voltage argument
- The order of the `-v` options determines the output order on the same line
- The option `-u` forces the usage of UTC time instead of the default local time
- The option `-q` configures the format of the date
!!! Note
It is unrelated to the `-a` option which is part of the filtering phase, always applied before any output mode.
!!! Warning
Be careful with the consistency of the filtering and the argument names as a not present field will skip the value and shift the output columns.
An example of output for `./bin/sscat sslogDb -f "Lorem ipsum*" -q "%K" -v -v intensity` is given below:
- `-f "Lorem ipsum*"` filters and keeps only the logs with the `intensity` named argument (see `sslog` test program)
- `-q "%K"` configures the timestamp to be the microseconds since the start of the log record (better for graphs)
- `-v -v intensity` asks for the value mode with first the log timestamp then the value of `intensity`
```
172266 530
172266 200
172267 640
172268 104
172269 550
172270 420
172271 510
172271 40
```

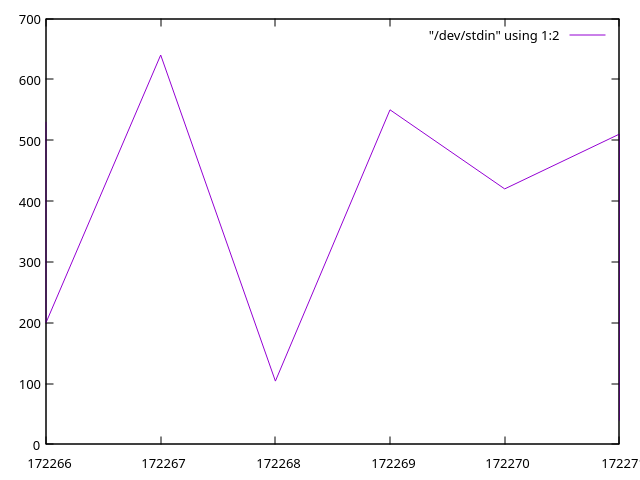

which gives the following graph when piped in gnuplot (for instance, with `... | gnuplot -p -e 'plot "/dev/stdin" using 1:2 with lines'`):
### Examples
Display all the logs (no filtering) in text:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
sscat <log dir>
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Keep only the logs with a binary buffer and on a category matching `*engine*`:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
sscat <log dir> -bmin 1 -c "*engine*"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Select the logs on a category matching `*engine*` but not on a thread matching `worker*`
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
sscat <log dir> -nt "worker*" -c "*engine*"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Select the logs which possess an argument named `id` and another named `user`
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
: Note: argument filtering option may be used multiple times
sscat <log dir> -a "id" -a "user"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
!!! warning
The argument name shall be exact, no pattern matching for argument's names and values
Select the logs which possess an argument named `user` which has a value `github_agent`
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
: Note: '=' or '==' are identical
sscat <log dir> -a "user==github_agent"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Select the logs on category `transaction` and which possess an argument named `id` which has a value higher than 356 and lower or equal to 1000
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
sscat <log dir> -c "transaction" -a "id>356" -a "id<=1000"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Select the logs with level >= error, with category name containing 'car', which contain both an argument named 'color' and one named 'wheels' with value >= 4
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Python
sscat <log dir> -lmin error -c "*car*" -a color -a "wheels>=4"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Select the logs on category `transaction` and which possess an argument named `id` which has a value higher than 356 and lower or equal to 1000
OR the logs with level >= error, with category name containing 'car', which contain both an argument named 'color' and one named 'wheels' with value >= 4
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ shell
sscat <log dir> -c "transaction" -a "id>356" -a "id<=1000" -o -lmin error -c "*car*" -a color -a "wheels>=4"
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
### Formatters
The log output is fully flexible and is configured via a string called "format specifier".
It looks like a `printf` format string with a different set of percent specifiers, and replaces them with the associated log information.
For instance, a date could be formatted as `Today, %A, is %Y-%m-%d" which gives at a point in time
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Today, Saturday, is 2025-03-15
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
The default format specifier is: `[%L] [%Y-%m-%dT%H:%M:%S.%f%z] [%c] [thread %t] %v%Q`
The list of available specifiers is described in the [logger configuration page](configuration_reference_api.md.html#formatspecifiers)
Further data manipulation can now be performed externally, for instance with the tool [jq](https://jqlang.org/).
